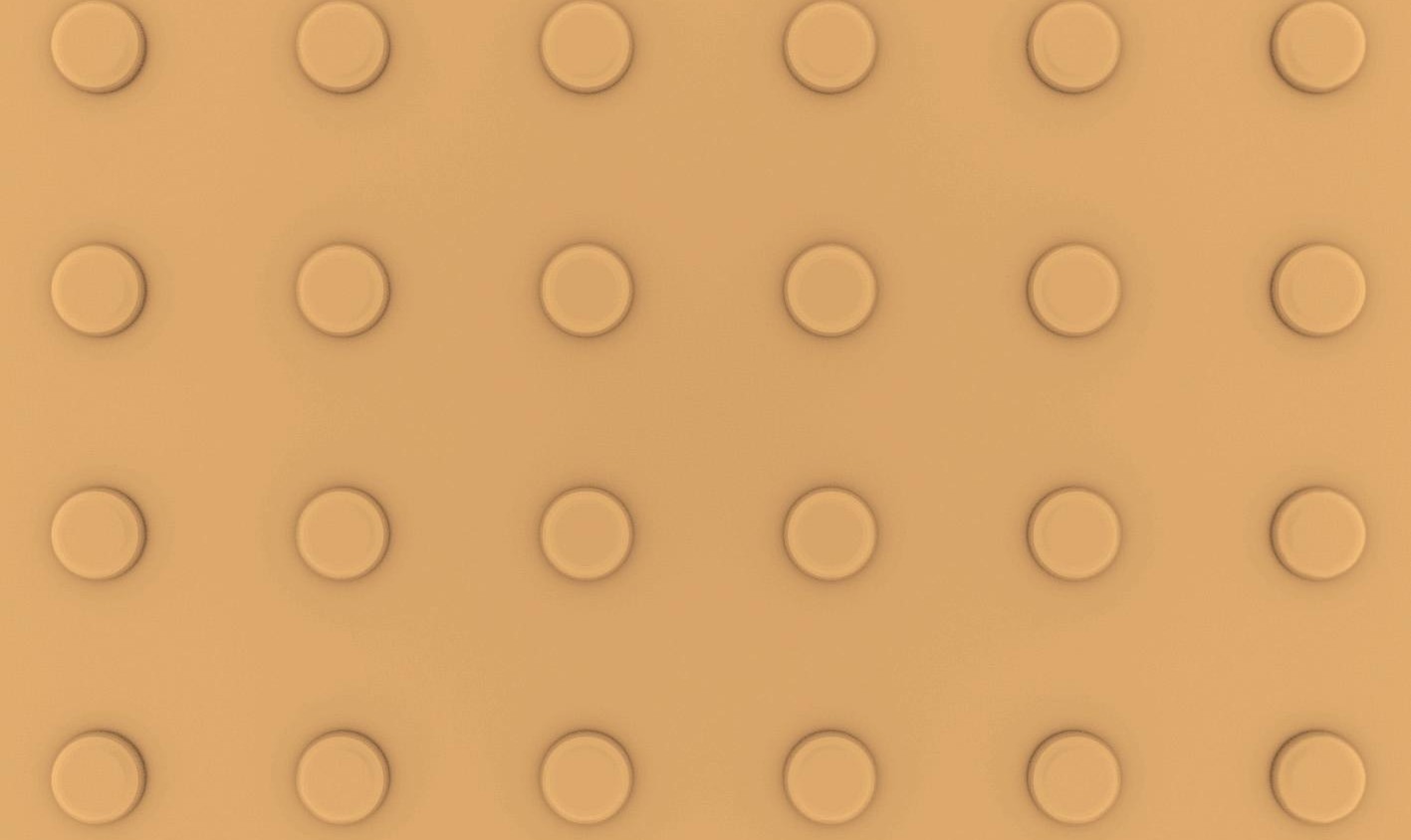

AtlasConcorde Groundtrack YellowSTOP 30X30 MT68
Ground Track
GT Yellow STOP
GT Yellow STOP
Matte
11¾"x11¾"
rectified
Thickness
9 mm
Flooring
Very heavy trampling
Very heavy trampling
V1
V1
Technical info
Conforms with standard EN 14411 Appendix G group BIa Group: BIa (G)
Regularity features
ISO 10545-2

Length and width Suitable for

Thickness Suitable for

Straightness of sides Suitable for

Perpendicularity Suitable for

ISO 10545-2

Surface flatness Suitable for

Structural features
ISO 10545-3

Water absorption ≤0.1%

ASTM C373-18

Water absorption ≤0.5%

Bulk mechanical features
ISO 10545-4

Breaking strenght S ≥1500 N

Bending resistance R ≥40 N/mm²

ISO 10545-5

Impact resistance ≥0.55

Surface mechanical features
EN 101

Mohs hardness MOHS 6

ISO 10545-6

Deep abrasion resistance of unglazed tiles ≤150mm³

Thermo-igrometric features
10545-8

Coefficient of linear thermal expansion ≤7MK-1

10545-9

Thermal shock resistance Resistant

10545-10

Moisture expansion (in mm/m) ≤0.01% (0.1mm/m)

10545-12

Frost resistance Resistant

Physical properties
EN 1348

Bond strenght ≥1.0 N/mm² (Class C2 - EN 12004)

Reaction to fire A1 - A1fl

Chemical features
ISO 10545-13

Resistance to household chemicals and swimming pool salts A

Resistance to low concentrations of acids and alkalis LA

Resistance to high concentrations of acids and alkalis HA

ISO 10545-14

Stain resistance 5

Safety characteristics
DIN 51130

Booted ramp test R10

DIN 51097

Barefoot Ramp test A+B+C

Certifications
