Level

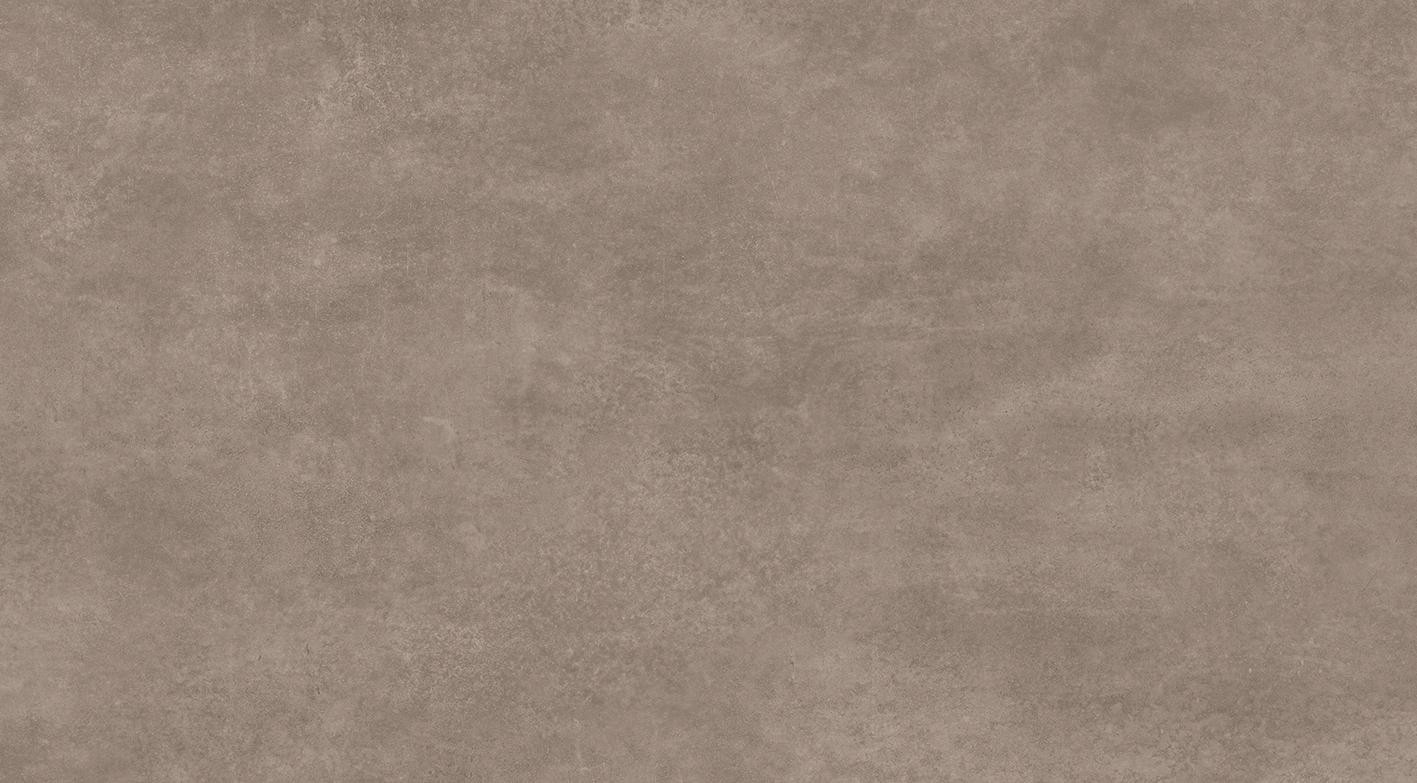

Level Greige
57 cm 22½"
31,5 cm 12⅜"
Level Greige
Matte
31,5x57 cm 12⅜"x22½"
not rectified
not rectified
8.5 mm
V2
Technical info
Conforms with standard EN 14411 Appendix G group BIa Group: BIa (G)
Dimensions
ISO 10545-2
Length and width Suitable for
Thickness Suitable for
Straightness of sides Suitable for
Perpendicularity Suitable for
ISO 10545-2
Surface flatness Suitable for
Physical properties
ISO 10545-3
Water absorption 10%<EV≤20%
ISO 10545-4
Breaking strenght S ≥600 N
Bending resistance R ≥15 N/mm²
10545-8
Coefficient of linear thermal expansion ≤7MK-1
10545-9
Thermal shock resistance Resistant
10545-10
Moisture expansion (in mm/m) ≤0.06% (0.6mm/m)
10545-11
Creazing resistance Resistant
EN 1348
Bond strenght ≥1.0 N/mm² (Class C2 - EN 12004)
Reaction to fire A1
Chemical features
ISO 10545-13
Resistance to household chemicals and swimming pool salts A
Resistance to low concentrations of acids and alkalis LA
Resistance to high concentrations of acids and alkalis HA
ISO 10545-14
Stain resistance 5
ISO 10545-15
Release of dangerous substances ≤0.01mg/dm2 Cd ≤0.1mg/dm2 Pb
