Información técnica
Características principales
Espesor:
9 mm
R10, A+B
V2
Certificaciones
Características
ISO 10545-2
Length and width Suitable for
Espesor Suitable for
Straightness of sides Suitable for
Perpendicularity Suitable for
ISO 10545-2
Surface Flatness Suitable for
ISO 10545-3
Water Absorption (in % by mass) <=0.1%
ASTM C373-18
Water Absorption (in % by mass) <=0.5%
ISO 10545-4
Breaking strenght S >=1500 N
Bending resistance R >=40 N/mm2
EN 1339 Annex F
Bending strength and breaking load -
ISO 10545-5
Impact resistance, as coefficient of restitution >=0.55
ISO 10545-6
Resistance to deep abrasion of unglazed tiles (removed volume) <=150mm3
10545-8
Coefficient of thermal linear expansion <=7MK-1
10545-9
Thermal shock resistance Resistant
10545-10
Moisture expansion (in mm/m) <=0.01% (0.1mm/m)
10545-12
Frost resistance Resistant
Bond strength/adhesion for improved cementitious adhesives
Bond strength/adhesion for improved cementitious adhesives >=1.0 N/mm2 (Class C2 - EN 12004)
Reaction to fire A1 - A1fl
ISO 10545-13
Resistance to household chemicals and swimming pool salts A
Resistance to low concentration of acids and alkalis LA
Resistance to high concentrations of acids and alkalis HA
ISO 10545-14
Stain resistance 5
DIN EN 16165 ANNEX B (EX DIN 51130)
Booted ramp test R10
DIN EN 16165 ANNEX A (EX DIN 51097)
Barefoot ramp test A+B
BS EN 16165 ANNEX C (EX BS 7976)
Pendulum friction Test >=36Dry >=36Wet
AS 4586
Pendulum friction Test Class C2
UNE 41901 (EX:2017)
Pendulum friction Test Class C2
B.C.R.A. Rep. CEC/81
Coefficient of friction (COF) >0.40Asciutto >0.40Bagnato
ANSI A 326,3
Dynamic coefficient of friction (DCOF) wet DCOF>= 0,50
Azulejos de remate
LOG Deep Oak Battiscopa Digitale 120
LOG Deep Oak Battiscopa Digitale 120
LOG Deep Oak Battiscopa Digitale 150
LOG Deep Oak Battiscopa Digitale 150
LOG Deep Oak Scalino 120
LOG Deep Oak Scalino 120
LOG Deep Oak Scalino 150
LOG Deep Oak Scalino 150
Log

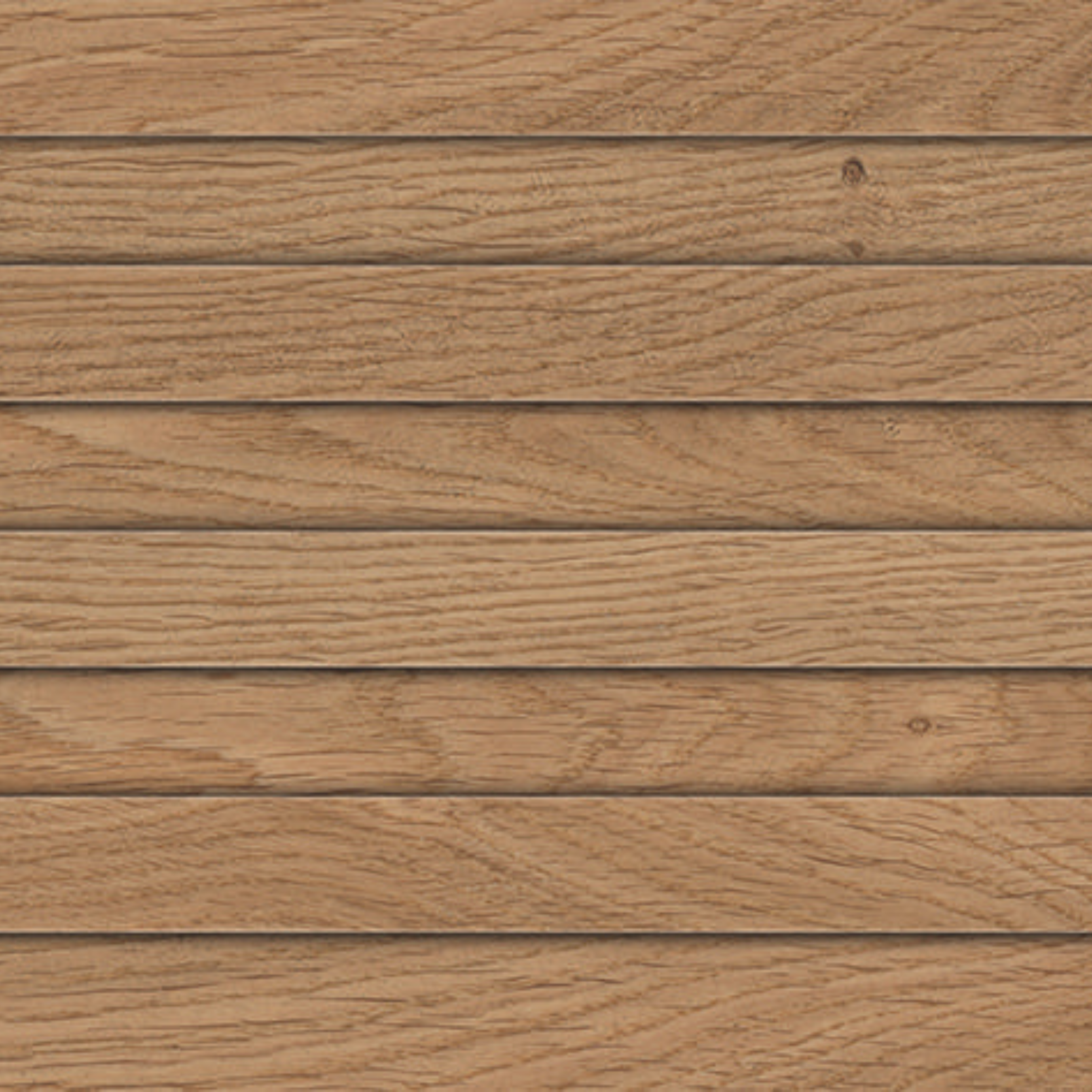

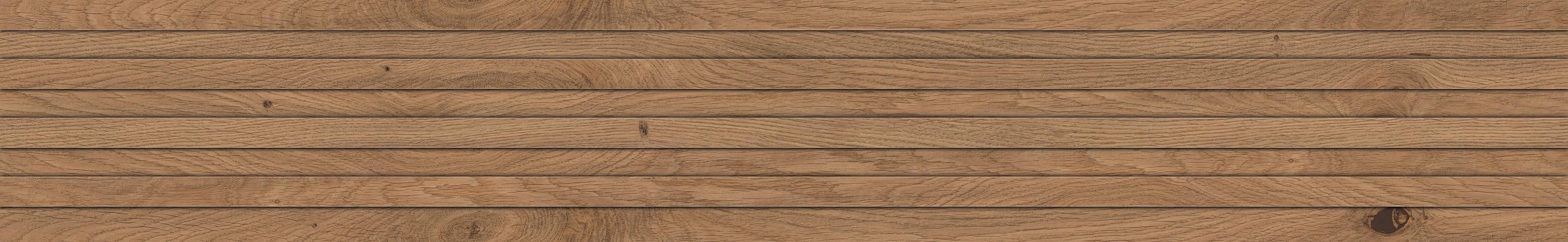

La primera colección de gres porcelánico efecto roble natural, creada junto con los especialistas de la madera, Itlas. Partiendo de las mejores referencias naturales cuidadosamente seleccionadas por Itlas, los grafismos de esta colección se han creado con el objetivo de realzar los detalles de la madera de roble natural recreando su veteado típico.
