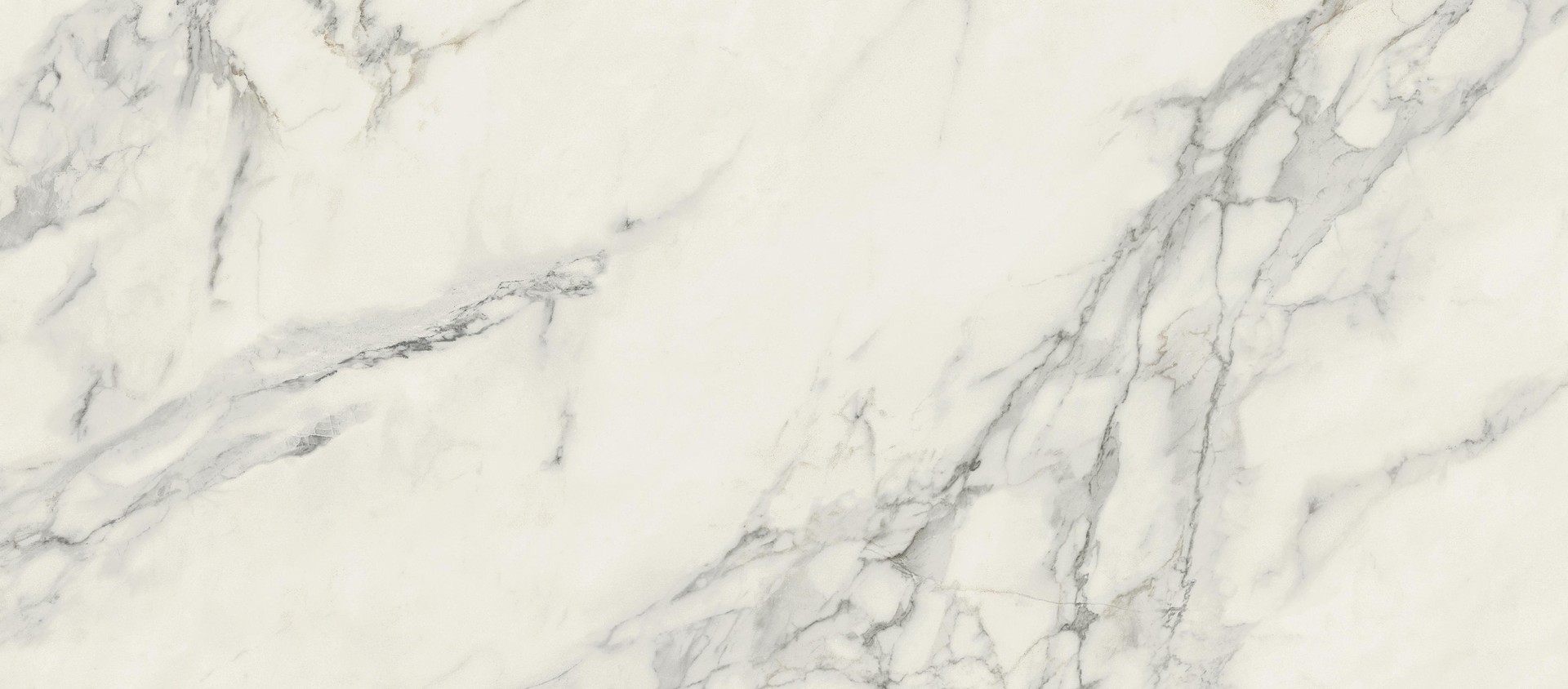

Marvel Calacatta Extra Matt 160x160RT

Matte
160x160 cm 63"x63"
rectified
Scroll left and right to see alternative product graphics
Thickness
6 mm
Flooring Wall tiles
Average trampling
Average trampling
V2
V2
Explore the spaces created with this article
View Our Spaces
Technical info
Conforms with standard EN 14411 Appendix G group BIa Group: BIa (G)
Regularity features
ISO 10545-2

Length and width Suitable for

Thickness Suitable for

Straightness of sides Suitable for

Perpendicularity Suitable for

ISO 10545-2

Surface flatness Suitable for

Structural features
ISO 10545-3

Water absorption ≤0.1%

ASTM C373-18

Water absorption ≤0.5%

Bulk mechanical features
ISO 10545-4

Breaking strenght S ≥1000 N

Bending resistance R ≥40 N/mm²

ISO 10545-5

Impact resistance ≥0.55

Surface mechanical features
EN 101

Mohs hardness MOHS 6

ISO 10545-6

Deep abrasion resistance of unglazed tiles ≤150mm³

Thermo-igrometric features
10545-8

Coefficient of linear thermal expansion ≤7MK-1

10545-9

Thermal shock resistance Resistant

10545-10

Moisture expansion (in mm/m) ≤0.01% (0.1mm/m)

10545-12

Frost resistance Resistant

Physical properties
EN 1348

Bond strenght ≥1.0 N/mm² (Class C2 - EN 12004)

Reaction to fire A1 - A1fl

Chemical features
ISO 10545-13

Resistance to household chemicals and swimming pool salts A

Resistance to low concentrations of acids and alkalis LA

Resistance to high concentrations of acids and alkalis HA

ISO 10545-14

Stain resistance 5

Safety characteristics
DIN 51130

Booted ramp test R9

DIN 51097

Barefoot Ramp test A

BS 7976

Pendulum friction Test PTV ≥ 36 Wet on demand

AS 4586

Pendulum test P3 on demand

UNE-ENV 12633

Pendulum friction test C2 on demand

B.C.R.A. Rep. CEC/81

Coefficient of friction >0.40Asciutto >0.40Bagnato

ANSI A137.1

Dynamic coefficent of friction (DCOF) Wet DCOF ≥ 0.42

Certifications

Download area

PDF Catalogue
Download
Porcelain tile technical features
Download
Wall tile technical features
Download
