Technical Info
Main Features
Thickness:
9 mm
R10, A+B
V3
Features
ISO 10545-2
Length and width Suitable for
Thickness Suitable for
Straightness of sides Suitable for
Perpendicularity Suitable for
ISO 10545-2
Surface Flatness Suitable for
ISO 10545-3
Water Absorption (in % by mass) <=0.1%
ASTM C373-18
Water Absorption (in % by mass) <=0.5%
ISO 10545-4
Breaking strenght S >=1500 N
Bending resistance R >=40 N/mm2
EN 1339 Annex F
Bending strength and breaking load -
ISO 10545-5
Impact resistance, as coefficient of restitution >=0.55
ISO 10545-6
Resistance to deep abrasion of unglazed tiles (removed volume) <=150mm3
10545-8
Coefficient of thermal linear expansion <=7MK-1
10545-9
Thermal shock resistance Resistant
10545-10
Moisture expansion (in mm/m) <=0.01% (0.1mm/m)
10545-12
Frost resistance Resistant
Bond strength/adhesion for improved cementitious adhesives
Bond strength/adhesion for improved cementitious adhesives >=1.0 N/mm2 (Class C2 - EN 12004)
Reaction to fire A1 - A1fl
ISO 10545-13
Resistance to household chemicals and swimming pool salts A
Resistance to low concentration of acids and alkalis LA
Resistance to high concentrations of acids and alkalis HA
ISO 10545-14
Stain resistance 5
DIN EN 16165 ANNEX B (EX DIN 51130)
Booted ramp test R10
DIN EN 16165 ANNEX A (EX DIN 51097)
Barefoot ramp test A+B
BS EN 16165 ANNEX C (EX BS 7976)
Pendulum friction Test >=36Dry >=36Wet
AS 4586
Pendulum friction Test Class P3
UNE 41901 (EX:2017)
Pendulum friction Test Class C2
B.C.R.A. Rep. CEC/81
Coefficient of friction (COF) >0.40Asciutto >0.40Bagnato
ANSI A 326,3
Dynamic coefficient of friction (DCOF) wet DCOF>= 0,50
Decors
Trim tiles
Marvel Next Calacatta Oro Gradino 120
Marvel Next Calacatta Oro Gradino 120
Marvel Next Calacatta Oro Battiscopa Digitale 120
Marvel Next Calacatta Oro Battiscopa Digitale 120
Marvel Next Calacatta Oro Scalino 120
Marvel Next Calacatta Oro Scalino 120
Marvel Next

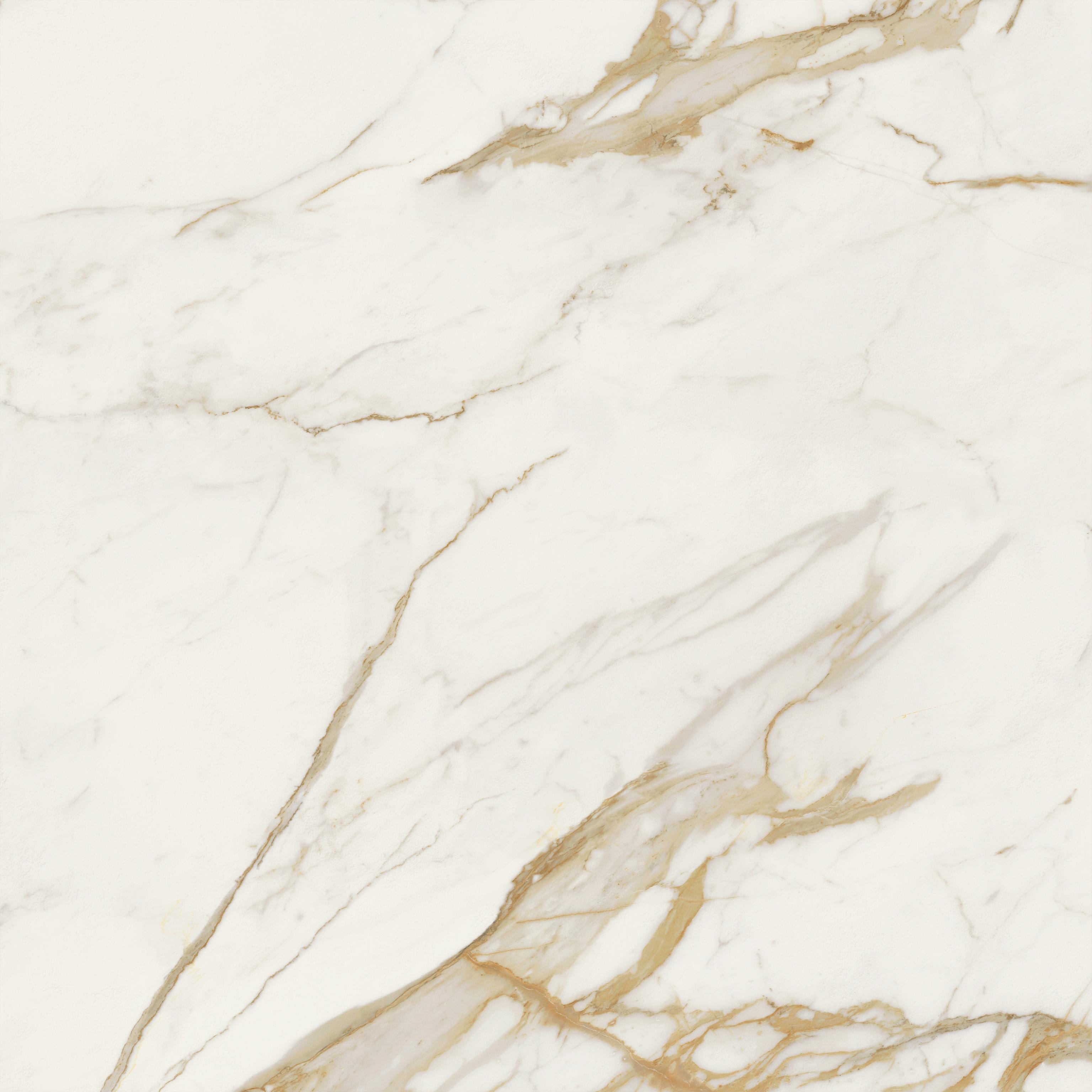

Marvel Next opens a new chapter in the Marvel World, reinterpreting the marble effect through subtle veining and balanced colors, ideal even for large surfaces. The various finishes modulate the interplay between light and material, offering designers the freedom to adjust intensity, accents, and details. The collection seamlessly spans floors, walls, furnishings, and facades, from interiors to outdoor spaces. A design language born from Atlas Concorde’s research and the culture of the Marvel world.
